At the heart of the control system is a built-in PLC, which enables easy integration of the robot with external input devices (sensors, safety light curtains, cameras, buttons) and actuators (relays, inverters, solenoid valves). Thanks to this versatile design, the RBR2110 arm can be used with a wide range of tools – from welding machines and vacuum grippers to electrospindles, plasma torches, paint guns, and grinding heads. The robust housing with an IP50/IP54 protection rating guarantees trouble-free operation even in harsh industrial environments.
Applications and Industries
Thanks to its large workspace (2.1 m reach) and the ability to connect a variety of accessories, the robot is suitable for use in many industries:
- Welding and cutting automation: operating plasma torches and welding machines on steel structures.
- Pick & Place: quickly sorting, packaging, and manipulating workpieces using grippers or suction cups.
- Surface finishing and finishing: milling, drilling, grinding, and edge cleaning using an electrospindle or grinding head.
- Painting and gluing: precisely guiding paint guns or adhesive dispensers along complex trajectories.
- Assembly and special operations: automatic riveting, nailing, and annealing.
Key advantages and features
- Working range of 2100 mm with a payload of 10 kg: allows for the easy handling of large-format workstations and heavier workpieces.
- Built-in PLC: allows for easy programming of I/O control programs and integration with the production line.
- Application versatility: the arm is ready to mount almost any end-use tool (gripper, spindle, welder, painter).

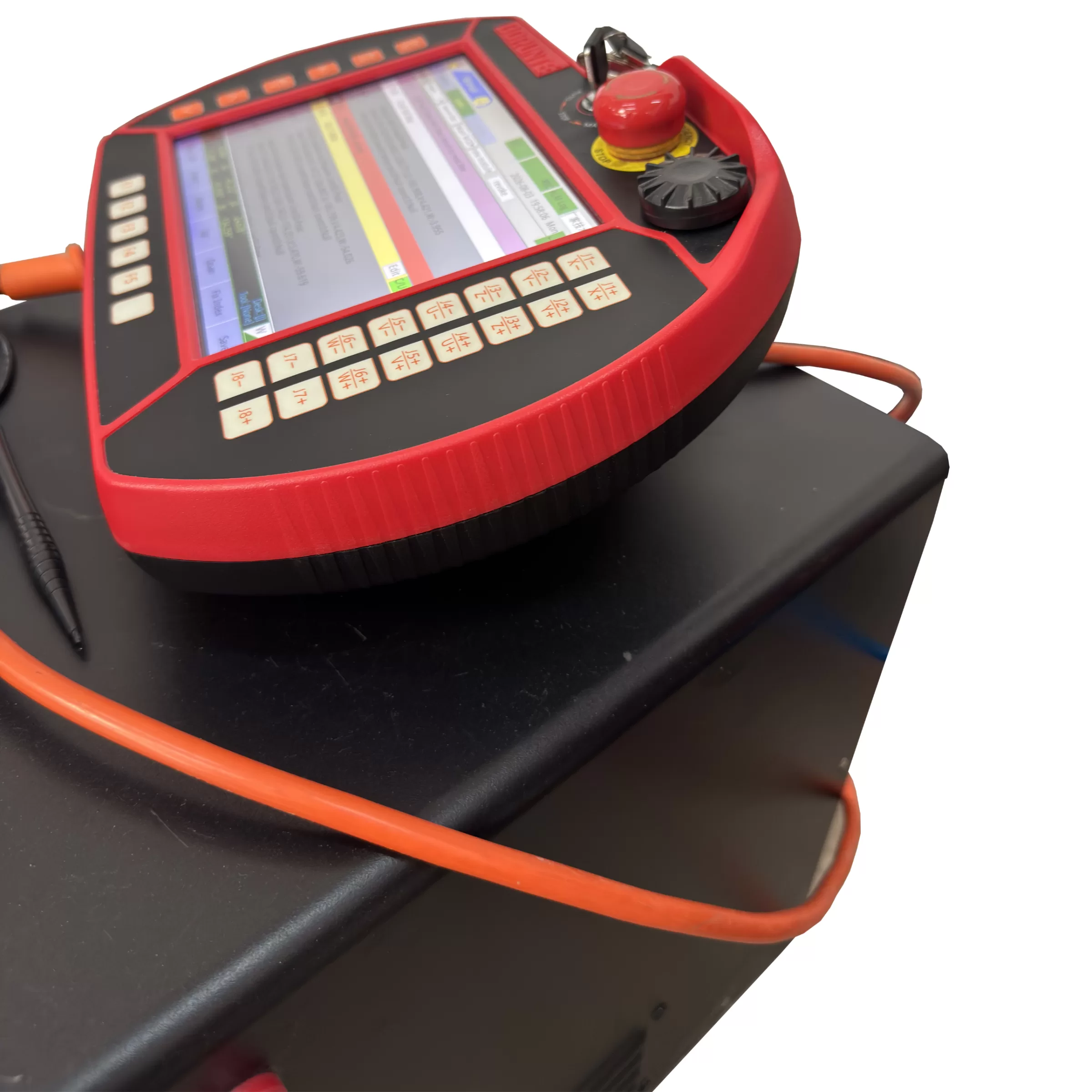

- Convenient programming (Teach Pendant): an intuitive, portable operator panel with an English-language interface simplifies robot positioning.
- High performance and axis speed: axis rotational speeds of up to 336°/s ensure significantly reduced cycle times.
- Industrial durability (IP50 / IP54): the dust- and spark-resistant design, weighing 230 kg, maintains its position stably.
Technical specification
