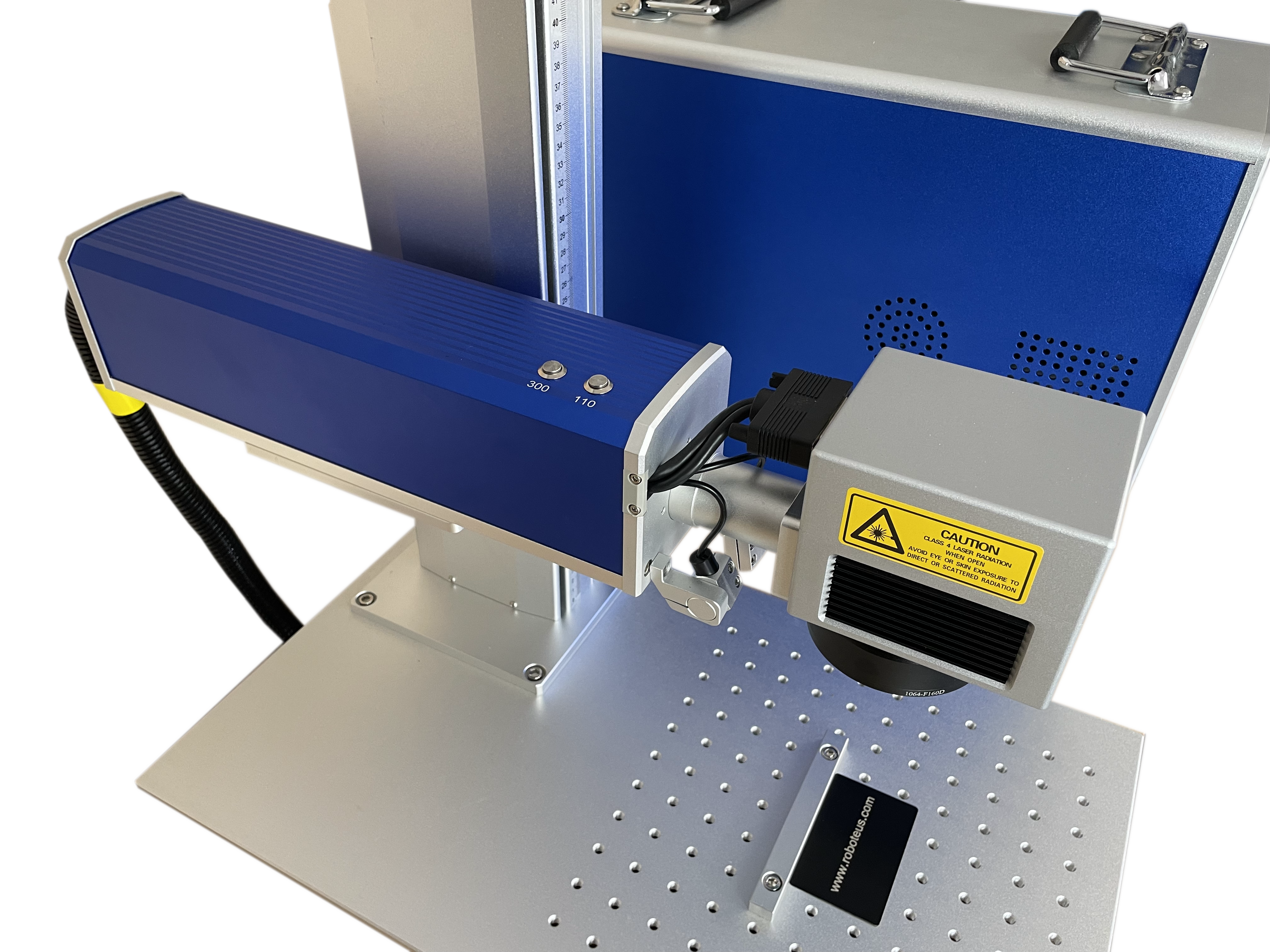

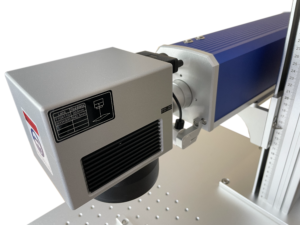

The machine is equipped with a galvanometric head and a focusing lens with a working field of 200x200mm. It is a complete device with a compact housing that facilitates the transport of the marker and maintenance during use. The machine is equipped with a USB port, and after connecting an external computer (PC or notebook) and installing the Ezcad software, the machine can be used. We provide instructional videos covering all stages of machine setup, from software installation to the first engraving.
The set includes a rotary attachment, also known as the 4th axis, with a lathe chuck for mounting rotary elements (sleeves, rings, connectors, etc.). The machine also comes with safety goggles essential for safe operation and a footswitch to speed up serial engraving work.
The Fiber laser engraver is a very fast technology for applying barcodes or QR codes, markings, inscriptions, logos, graphics, etc. Materials that this type of fiber source can handle include black and stainless steel, non-ferrous metals, plastics, and natural leather. It is ideal for industrial use.
Key advantages include:
The price in the basic configuration is only 15,000 PLN.
Working area (x,y,z) | 20x20cm |
---|---|
Construction material | aluminum |
Worktable | raster with M6 threads |
Source | fiber laser Raycus 30W |
Head | galvo fiber with a 200x200mm lens |
Power supply | 230v |
Controller | EZCAD |
Working accuracy | 0,01mm |
Supported formats | AI, PLT, DXF, BMP, Dwg, LAS, DXP |
Communication | USB |
Cooling system | air-cooled source |
Weight | 50kG |
Working speed | 0-7000mm/s |
Sensors | laser height indicator (focus) and foot switch |
Minimum character size | 0,3mm |
External dimensions | 60x75x75cm (assembled set) |
Additional configuration | 4th rotary axis or a more powerful 50W source |
